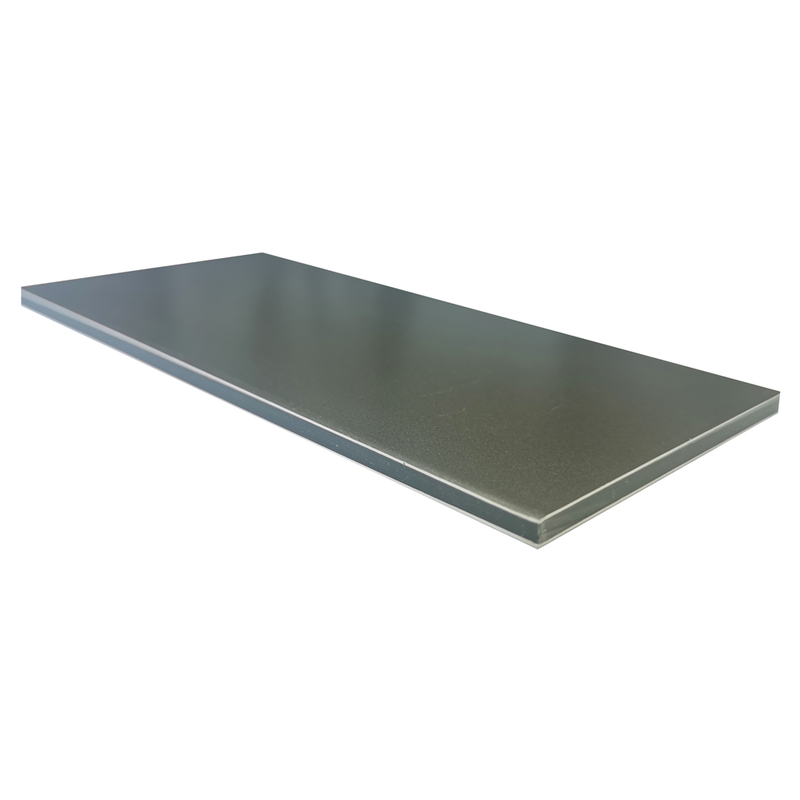

Kingmets Aluminium Composite Panel (ACP) is a composite material consisted of two aluminium sheets laminated to a plastic core. The aluminium sheet surface is pre-painted by roller coating technology with required colors or textures for decorative purpose. And the plastic core can be standard LDPE core (low density polyethyelene) or FR B1 (fire retardant B1 grade) or FR A2 (fire retardant A2) grade.
Aluminium composite panel (ACP) is mainly used for façade and wall cladding, sign board, furniture etc. It’s economic in cost but with very nice decorative effects, and it’s easy to fabricate and install. It has been well accepted in the market for over 50 years.
Panel thickness | 3mm, 4mm, 5mm, 6mm |
Panel width | 1000mm, 1220mm, 1500mm (customized width with max 2000mm) |
Panel length | 2440mm, 3200mm, 4000mm, 5800mm (customized length as required) |
Aluminium skin thickness | 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm |
Composite core | LDPE, FR B1 grade, FR A2 grade |
Aluminium alloy | 1100, 3003, 5005 |
Coating technology | Pre-painted roller coating |
Coating type | PVDF, FEVE, PE, Anodized, PVC film laminated |
| Color options | Mill finish, metallic colors, solid colors, wooden colors, stone colors, anodized color |
| Beautiful colors | Affordable price | |
| Aluminium composite panel is available in hundreds of colors and textures. No matter standard colors or customized RAL colors, or even spectra colors, wood grain, stone grain, mirror, hairline etc, all can be made on ACP panel. | ACP only uses two thin aluminium sheets but it reaches same decoration effects like solid aluminium panel. And the price of ACP is just about 50% of aluminium solid panel when comparing at same panel thickness. | |
| Good flatness | Light weight | |
| The 3-layer panel structure keeps the tensile strength of top aluminium sheet and bottom aluminium sheet balanced. The panel remains at a good flatness when comparing to the single layer solid aluminium panel. | The core layer of ACP is low density plastic, and greatly reduce the total panel unit weight. Example, a 4mm thick ACP with 0.5mm aluminium skin sheet is only around 6.3kgs/m2, but a 4mm thick solid aluminium panel is 10.8kgs/m2. | |
| Fire retardant | Recyclable material | |
Aluminium composite panel can be made with fire retardant core to reach FR B1 grade & FR A2 grade. | After its service life, ACP panel can be fully recyclable by detaching aluminium skins from plastic core. |
Solid Colors Series
Metallic Colors Series
Wood Grains Series
Stone Grains Series

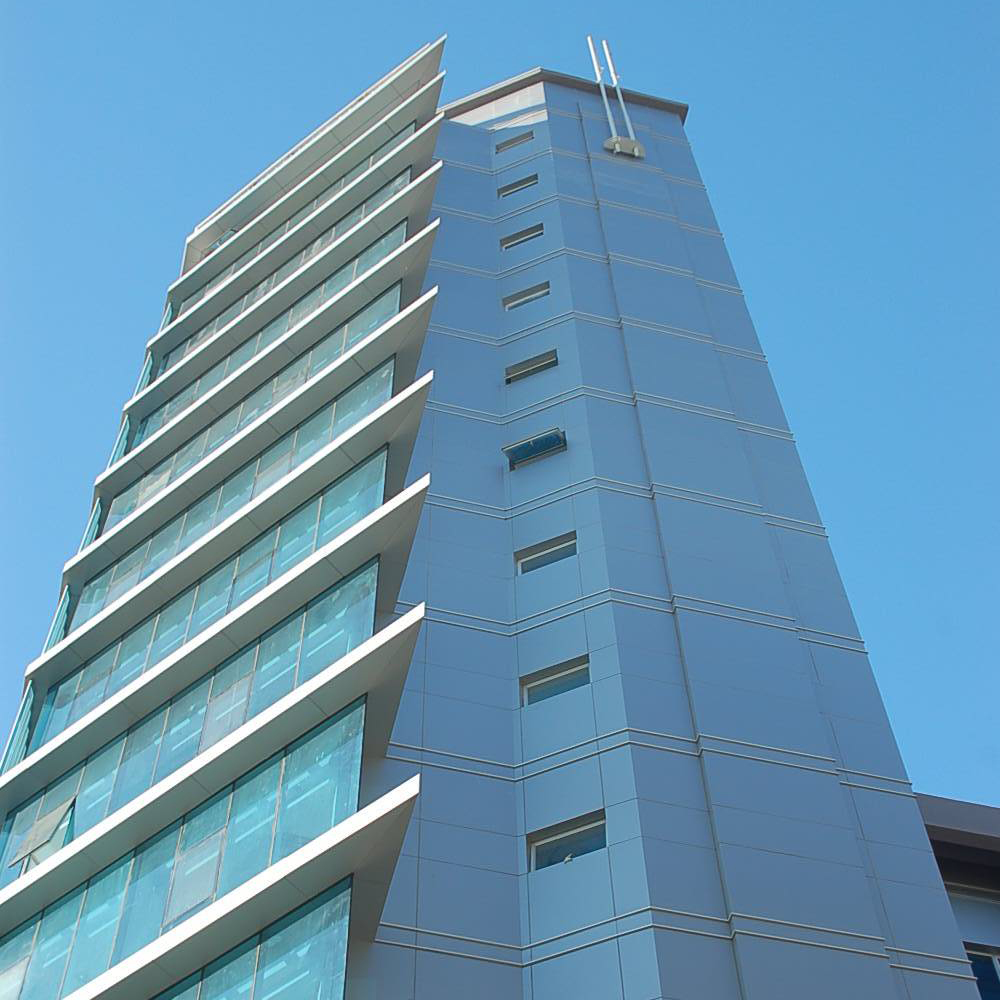

Facade Cladding

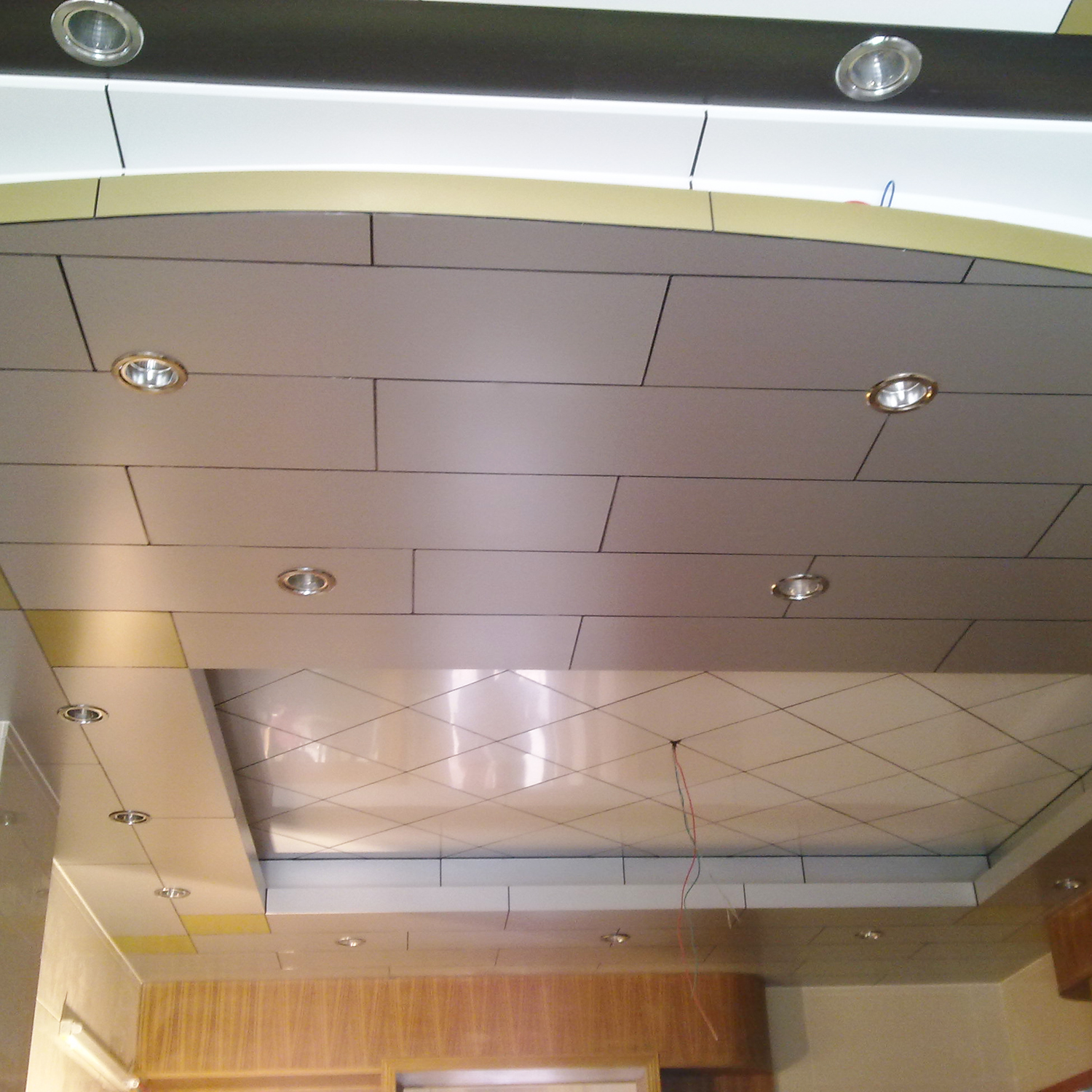

Interior Wall & Ceiling

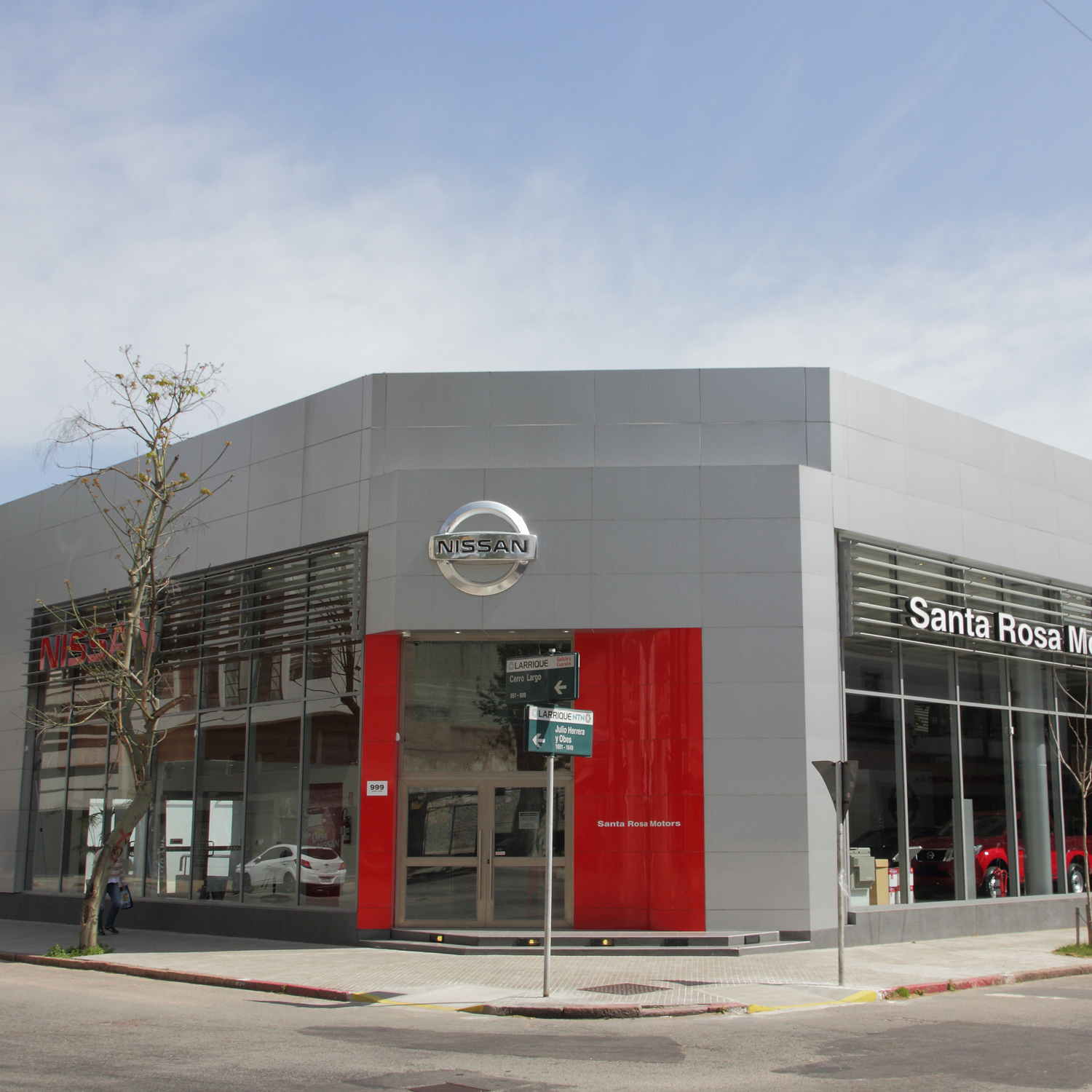

Shopfront Decoration

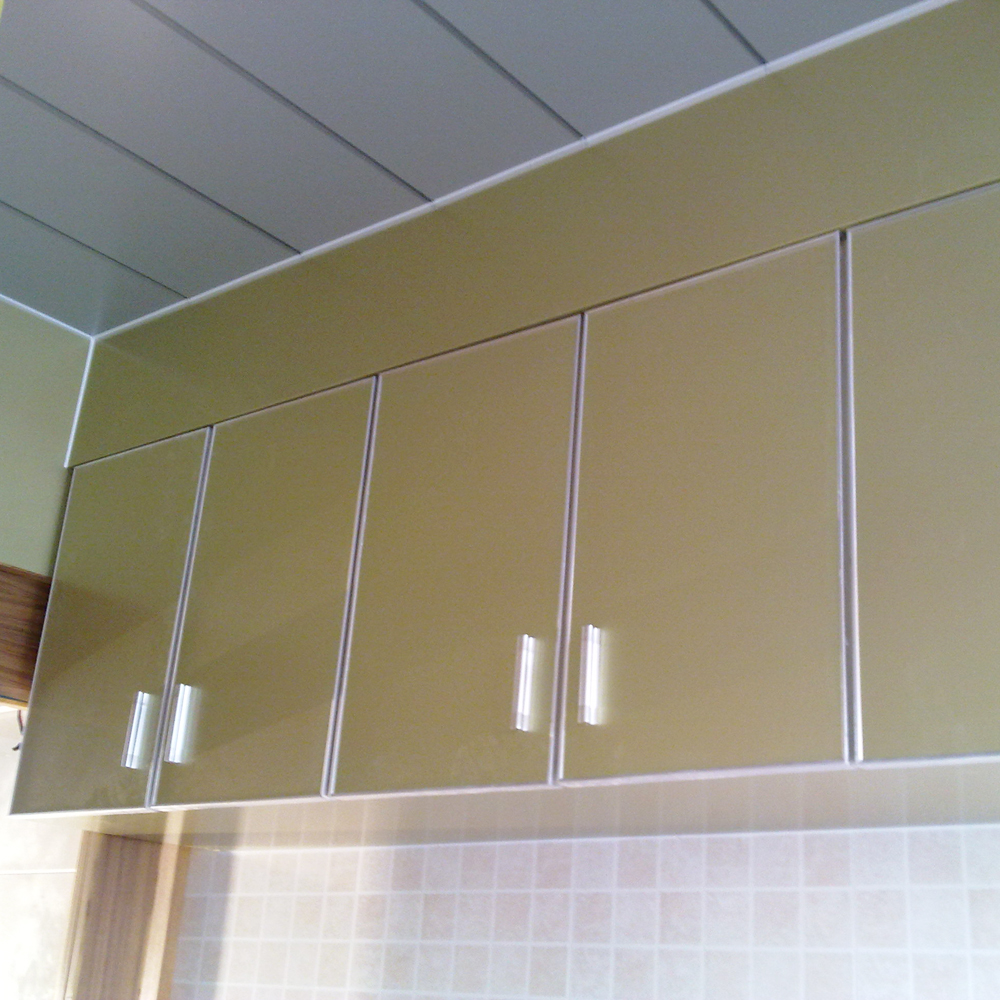

Furniture
| Basic Information | |||
| Item | Value | Tolerance | |
| Panel thickness | 4mm | +/-0.2mm | |
| Aluminum skin thickess | 0.3mm / 0.4mm / 0.5mm | +/-0.02mm | |
| Aluminum alloy | 1100 / 3003 | ||
| Core | LDPE (low density polyethylene) | ||
| Panel width | 1220mm / 1500mm Max 2000mm | +/-2mm | |
| Panel length | 2440mm to 5800mm | +/-3mm | |
| Coating types | PVDF / FEVE / PE | ||
| Coating thickness | 25microns for general colors | +/-3microns | |
| Panel weight | 5.37 ~ 6.02kgs/sq.m | +/-5% | |
| Mechanical Properties | |||
| Property | Test Method | Test Result | |
| Flexural Strength | ASTM D790-10 Procedure A | 143Mpa | |
| Flexural Modulus | ASTM D790-10 Procedure A | 21130Mpa | |
| Shear Strength | ASTM D732-10 | 33.1Mpa | |
| Shear Resistant | ASTM D732-10 | 11368 | |
| Tensile Strength | ASTM E8/E8M-11 | 52.2Mpa | |
| Heat Deflection Temperture | ASTM D648-07 Method B | 107℃ | |
| Coefficient of Linear Thermal Expansion | ASTM D696-08 | 47.10X10-6 | |
| Thermal Resistance (R value) | DIN 52612 | 0.0101 m²K/W | |
| 180° Peel Strength | ASTM D903-98 (2010) | >7N/mm | |
| Climbing Drum Peel Strength | ASTM D1781-98 (2012) | >110N·mm/mm | |
| Sound Transmission Class (STC) | ASTM E90 & ASTM E413 | 26dB | |
| Painting Dry Film Properties | |||
| Property | Test Method | Test Result | |
| 60"gloss | ASTM D523-89 | 30-95 | |
| Formability( T-bend) | ASTM D1737-62 | 2 | |
| Hardness Pencil | ASTM D3363-92a | 1-2H | |
| Adhesion | ASTM D3359，Method 8 | No change | |
| Abrasion Resistance | ASTM D968-93(Falling Sand) | 25 liter/mil | |
| Chemical Resistance | ASTM D1308-79 | No change | |
| ASTM D1308-79 | No change | ||
| AAMA 2605-05 Section 7.7.2 | No change | ||
| ASTM D2248-73 | No change | ||
| Weatherability | |||
| Property | Test Method | Test Result | |
| Color Retention | ASTM D2244-93 | Qualified | |
| Gloss Retention | ASTM D523-89 | Qualified | |
| Chalking | ASTM D4214-89 | Qualified | |
| Salty Spray | ASTM D-B117-90&NCCA 11-2 | Qualified | |
| Humidity Thermal | ASTM D2246-65 | Qualified | |
| Humidity | ASTM D2247-94 | Qualified | |
| Condensing Humidity | ASTM D4585-87 | Qualified | |
