Aluminium Cassette Rainscreen Cladding

Aluminium cassette rainscreen cladding is a popular choice for building wall caldding due to its strength, durability, and attractive appearance. These systems are made from solid aluminium panels that are fabricated into cassette panels and installed as a rainscreen on the exterior of a building or structure.

An aluminium rainscreen is a type of cladding system that is installed on the exterior of a building or structure to protect it from the elements. Rainscreens are designed to allow water to drain away from the building, while also providing a layer of insulation to help regulate the temperature inside the building. Meanwhile aluminium rainscreen is part of the building envelop, so it’s functioning as decorative panels too.

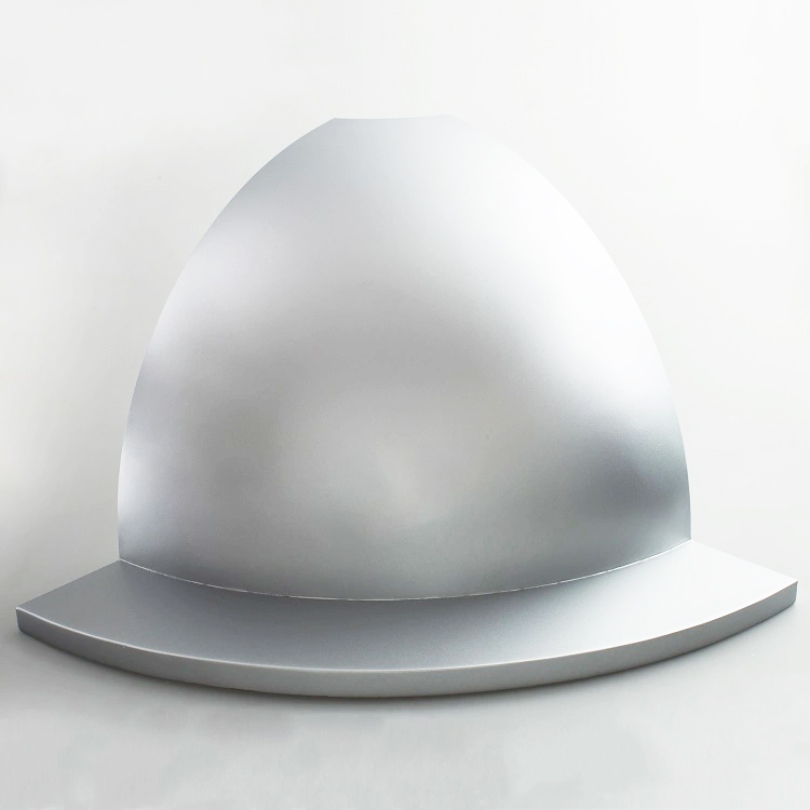

Aluminium rainscreen cladding systems are made by fabricating aluminium sheets into cassette panels. These panels are folded or bent into a specific shape and then welded or fastened together to form a cassette panel. Regular shape is the rectangle form like a tray, the four edges are folded and brackets are installed on panel edges; For the corner area or roof top or some area near the windows, irregular shapes like curved, or customized shapes, we can all do customized fabrication. And the aluminium cassette rainscreen cladding will be powder coated or sprayed coating.

Installation of Aluminium Cassette Rainscreen Cladding:

Aluminium cassette cladding systems are typically easy to install and can be customized to fit the specific needs and preferences of the project owner.

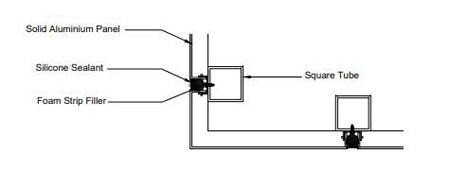

To install aluminium rainscreen cladding, the panels are typically fastened to the exterior of the building using screws, adhesive, or other fasteners. The frame for installing the aluminium cassette cladding are aluminium profiles, generally are big square tubes along with some extrusions designed for watertight function. For the joints between each aluminium cassette cladding, we can put foam strip in it and then put silicone sealant to seal up; For projects that don’t want the aluminium rainscreen to be with silicone sealant, a proper design by using special shaped aluminum extrusions can also achieve the waterproof, it will be subject to architects’ design.

There are several types of aluminium rainscreen systems available, including solid aluminium panels, and aluminium composite panels (ACM). Solid aluminium panels are made from a single sheet of aluminium and offer a simple, classic look. Aluminium composite panels (ACM) are made from two sheets of aluminium that are bonded together with a core material, and offer a more modern, contemporary look. Both of them can be fabricated into cassettes panels, and suitable for aluminium cassette rainscreen cladding. But for building that need non-combustible cladding materials, or building rainscreen design is complex, the solid aluminium panels are the more ideal option.

Benefits of Aluminium Cassette Rainscreen Cladding:

One of the main benefits of using aluminium cassette cladding for rainscreen is its durability and resistance to weathering and corrosion. Aluminium is a highly resistant material that is able to withstand harsh weather conditions and is not prone to rusting or corrosion. And the coating we apply on the surface of these aluminium cassette panels are PVDF paints which can last for decades. This makes aluminium cassette rainscreen cladding a good choice for use in outdoor or exposed applications.

Another benefit of using aluminium cassette rainscreen cladding is its versatility. These systems can be fabricated in a wide range of sizes, shapes, and colors to meet the specific needs and preferences of the architects. They can also be easily customized to fit the specific dimensions and requirements of the building or structure.

These systems are lightweight and easy to work with, making them a convenient and cost-effective choice for a wide range of applications. As they are fabricated in our factory and sent to project site as fabricated cassette panels, the workers just need to put the panels onto the aluminium frame directly by following the serial numbers shown on the drawing of elevation layout. An installation team can easily install several hundred square meters of aluminium rainscreen. And aluminium rainscreen cladding is also easy to maintain and can be easily cleaned to keep them looking like new.

Overall, aluminium cassette rainscreen cladding is a popular choice for a wide range of applications due to its strength, durability, and attractive appearance. These systems are easy to work with and can be customized to fit the specific needs and preferences of the homeowner. Whether you are looking for a cladding system for a building or structure, or simply want to add visual interest to an outdoor space, aluminium cassette rainscreen cladding is a great choice.
