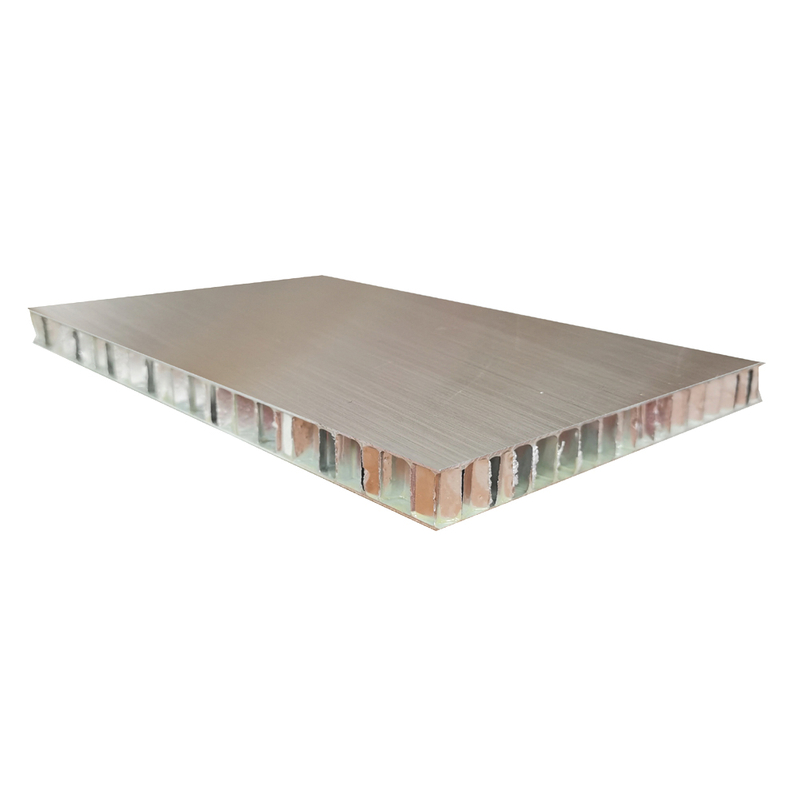

Kingmets stainless steel honeycomb panel is made with two stainless steel face sheets on front side & back side and bonded to an aluminium honeycomb core. This product structure keeps the original properties of what stainless steel panel have, but bringing down the unit weight & adding up a lot of panel strength.
Stainless steel panel has been using for architectural purpose for façade, interior walls, ceilings, floors etc because of it’s modern metallic decorative effect and good anti-corrosion. However for such architectural decoration purpose, a thickness of stainless steel panel should be 3mm or 4mm, it’s very heavy and meanwhile panel surface is always not flat enough. To solve this problem, Kingmets use the lightweight aluminium honeycomb as substrate material to support the thin stainless steel skin sheets, so as to achieve a best strength & weight ratio, that’s why we make stainless steel with honeycomb core.
Panel thickness | 10mm, 18mm, 25mm, 50mm or customized panel thickness |
Panel width | 1000mm, 1200mm or customized panel width |
Panel length | 2440mm, 3000mm, 4000mm, 5800mm or customized length |
Stainless steel skin thickness | 0.5mm, 0.7mm, 0.8mm, 1mm (or as required) |
Stainless steel grade | 304, 316L or as required |
Honeycomb core | Aluminium honeycomb A6*0.05 (or as required) |
Stainless steel patterns | 8K Mirror, hairline, various types of embossed surfaces |
Colors | Original stainless steel color, various types of PVD colors (Physical vapor deposition technology) |
Shape | Flat panel, curved panel, shapes to be fabricated as per drawing |
Panel edge | Closed edge, customized edges embedded with aluminium extrusions |
Fabrication | Fabrication or cutting service as per drawing upon request |
| Weight saving | Super flatness | |
A 10mm thick honeycomb panel with skin 0.8mm stainless steel skin sheets is only 13.7Kgs/m2, but a 4mm thick solid stainless steel panel is 31.7kgs/m2. Honeycomb core panel can reduce the weight by more than 50%. | Solid stainless steel panel generally hasoil canning surface especially when panel size is big. But honeycomb core panel is a high strength stable hexagonal structure, it provides much supporting strength to the face sheets and make panel surface flat. | |
| Outstanding decorative effect | High fireproof | |
Honeycomb panel face skin is real natural stainless steel, all types of stainless steel colors and patterns are available on honeycomb core panel. | Both stainles steel skin sheets and aluminium honeycomb core are fireproof materials. It reaches FR A2 grade as per EN13501-1 standard, suitable for being use for building facade, interior &ceiling. | |
| Weatherproof | Easy installation | |
Stainless steel contains chromium, nickel & molybdenum which makes it has outstandingly anti-corrosive and weatherproof. | Stainless steel honeycomb panel is pre-fabricated panels and it's easy and fast to do installation at project site. |
Mirror Series
Hairline Series
Embossed Series

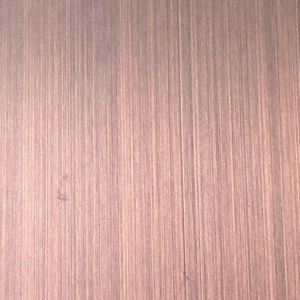

PVD Color Series

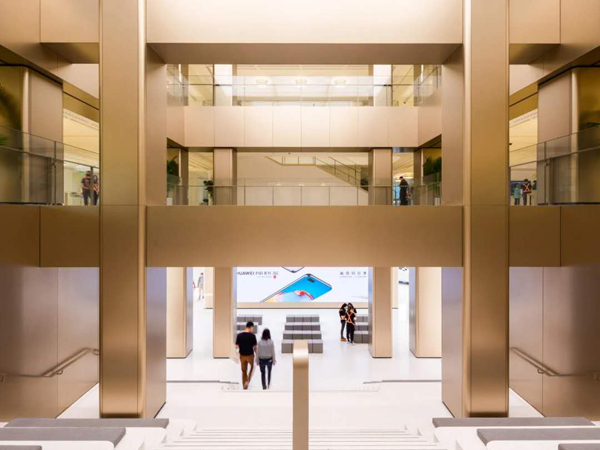

Facade Cladding |  Interior Walls |  Furniture |
Stainless Steel Skins Cutting |
Automatic Glue Spraying |
Honeycomb Panel Production Line | ||
Panel Assembly |
Panel Pressing Machine |
Panel Edge Trimming |
| Basic Information | |||
| Item | Value | Tolerance | |
| Panel thickness | 10mm | +/-0.2mm | |
| Stainless steel skin thickess | 0.7mm (Top)+ 0.7mm (Bottom) | +/-0.03mm | |
| Stainless steel grade | 304 | ||
| Honeycomb Core | Aluminium Honeycomb A6*0.05 | ||
| Panel width | 1200mm or customized | +/-2mm | |
| Panel length | 2440mm or customized | +/-4mm | |
| Diagonal | N/A | ≤5mm | |
| Flatness | N/A | <2mm/m | |
| Panel weight | 12.2kgs/sq.m | +/-5% | |
| Chemical Composition (based on grade 304): | |||
| Element | Actual Value | Element | Actual Value |
| Fe | Rest | P | 0.029 |
| C | 0.044 | S | 0.005 |
| Si | 0.425 | Ni | 8.023 |
| Mn | 1.087 | Cr | 18.308 |
| Mechanical Properties | |||
| Property | Test Method | Test Result | |
| Tensile Sterngth, Rm | ASTM E8/E8M-11 (Testing on stainless steel skins) | 660N/mm2 | |
| Yield Strength Rp0.2 | 270N/mm2 | ||
| Percentage Elongation after Fracture, A50mm | 60% | ||
| Core Shear Ultimate Strength | With reference to ASTM C393M-06 3points loading | 0.77Mpa | |
| Peel Torque | With reference to ASTM D1781-98(2012) | 7.23mm·kgf/mm | |
| Fire Proof Properties | |||
| Property | Test Method | Test Result | |
| Fire classification | EN13501-1 | FR A2 | |
| Fire classification | BS476 Part 6 & 7 | Class O | |
