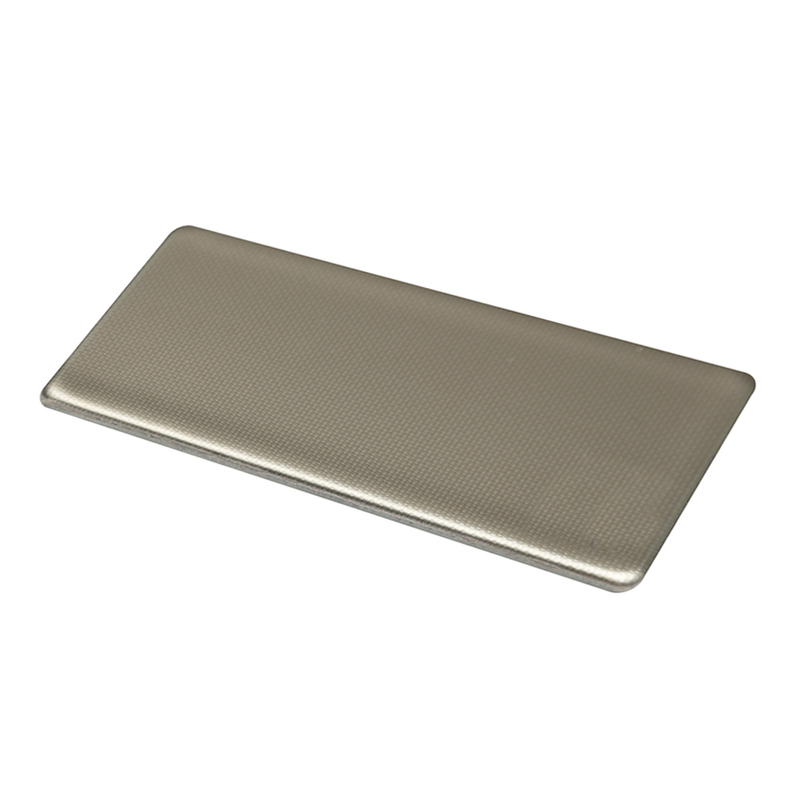

Kingmets Stainless Steel Composite Panel is composed of 3 layers of materials: two stainless steel sheets laminated to a plastic core. Such a composite product structure keeps the properties of solid stainless steel but brings down the product cost, and more importantly, has added much panel strength & flatness. made with two stainless steel face sheets on front side & back side and bonded to an aluminium honeycomb core. This product structure keeps the original properties of what stainless steel panel have, but bringing down the unit weight & adding up a lot of panel strength. It perfectly solve the oil canning issue of solid stainless steel panel and brings a flat and smooth wall elevation.
Stainless steel composite panel has a superior modern metallic look. It is mainly used for facade cladding, interior wall cladding, fasica, escalator & elevator cladding. It is available in patterns like mirror, hairline (brushed), various types of embossment. And stainless steel grade is 304 grade or 316L.
Panel thickness | 3mm, 4mm, 5mm, 6mm |
Panel width | 1000mm, 1200mm or customized panel width |
Panel length | 2440mm, 3000mm, 4000mm, 5800mm or customized length |
Stainless steel skin thickness | 0.3mm, 0.4mm, 0.5mm |
Stainless steel grade | 304, 316L or as required |
Composite core | LDPE (low density polyethylene), FR B1 (mineral filled fire retardant plastic) |
Stainless steel patterns | 8K Mirror, hairline, various types of embossed surfaces |
Colors | Original stainless steel color |
| Light weight | Good flatness | |
A 4mm thick stainless steel composite panel is about 10.5kgs/m2, much lighter in weight when comparing to a solid stainless steel panel at the same thickness. | Composite panel is a tensile strength balanced 3-layer structure, the panel is rigid and flat. The wall elevation cladded with stainless steel composite panel is very flat and look smooth. | |
| Up-to-date aesthetic | Fire proof | |
Stainless steel has a very strong metallic look and availlable in many different patterns. It shows an up-to-date decoration effect to the building. | Stainelss steel composite panel can be made with mineral filled fire retardant core. It meets EN13501-1 fire reaction class FR B1, suitable for wall cladding. | |
| Good anti-corrosion | Fully recyclable | |
Stainless steel contains chromium, nickel & molybdenum which makes it has outstandingly anti-corrosive and weatherproof. | Stainless steel skin sheet can be detached from the plastic core and recycled after it's service life, it is a green product. |
Mirror Series

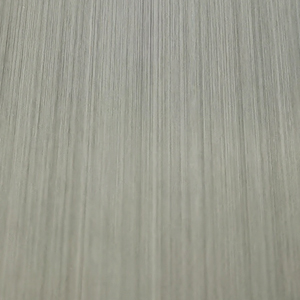

Hairline Series
Dull Finish

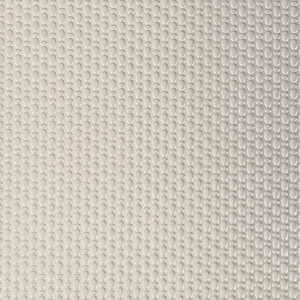

Embossed Series

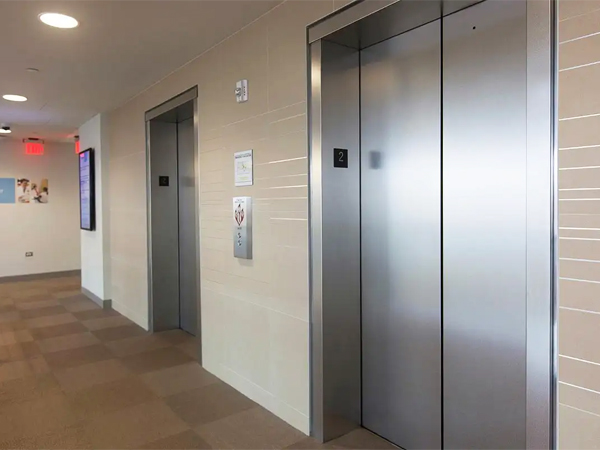

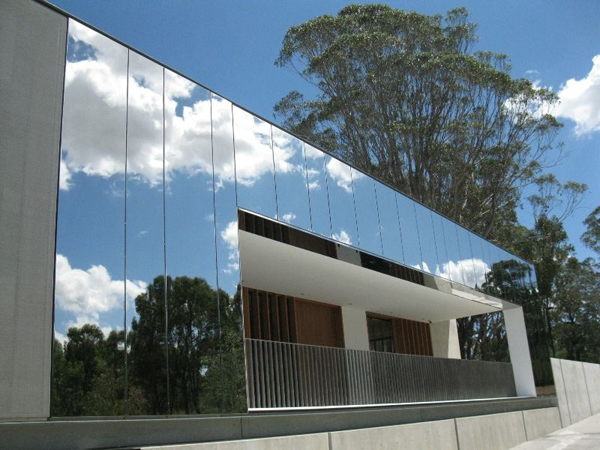

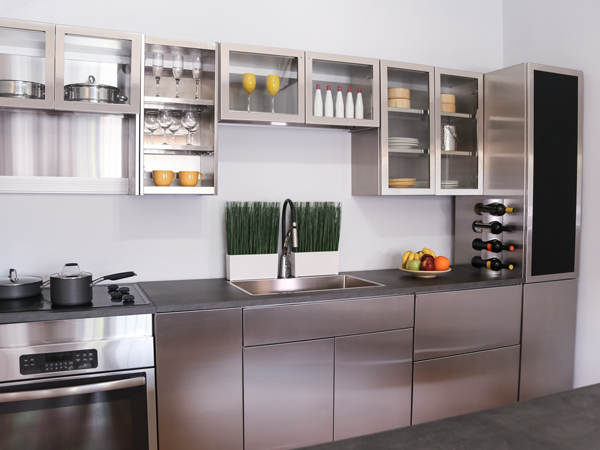

Facade Cladding |  Elevator Cladding |  Furniture |
| Basic Information | |||
| Item | Value | Tolerance | |
| Panel thickness | 4mm | +/-0.2mm | |
| Stainless Steel skin thickess | 0.4mm / 0.4mm | +/-0.03mm | |
| Stainless steel grade | 304 , 316L | ||
| Core | Mineral filled FR core | ||
| Panel width | 1200mm | +/-2mm | |
| Panel length | 1000mm to 5800mm | +/-6mm | |
| Surface Pattern | Mirror / Hairline / Embossment | ||
| Panel weight | 11.1kgs/sq.m | +/-5% | |
| Fire retardant Properties | |||
| Property | Test Method | Test result | |
| Flame Spread Index | ASTM E84 | Class A | |
| External cladding | BS476 part6 & 7 | class O | |
| External cladding | EN13501-1 | class B s1 d0 | |
| Mechanical Properties | |||
| Property | Test Method | Test result | |
| 0.2% Yield Strength | ASTM E8 | 260N/mm² | |
| Tensile Strength | 670Mpa | ||
| Elongation | 60% | ||
| Coefficient of linear Thermal Expansion | ASTM D698-08 (-30℃~+30℃) | 30x10-6 (1/℃) | |
| 180dgree Peel Strength | ASTM D903-98(2010) | >7N.mm/mm | |
| Accounstic Properties | |||
| Property | Test Method | Test result | |
| Sound Transmission Loss | ASTM E90-09 & ASTM E413-10 | 31dB | |
